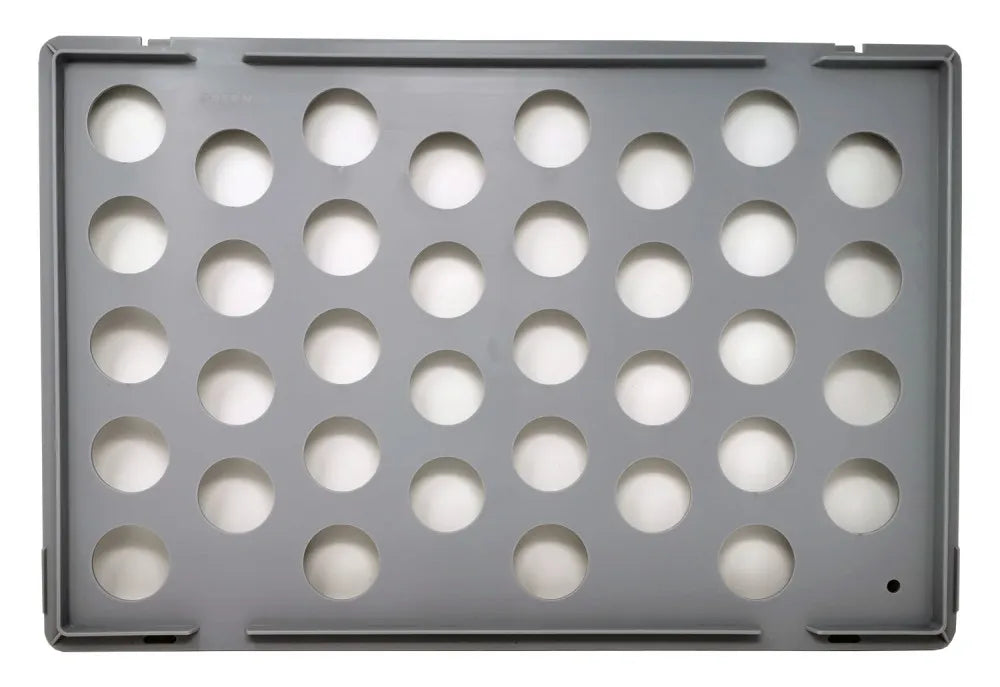

Aqua36 Replacement Cover Plate – 60 × 40 cm

The Aqua36 cover plate supports 36 matching slotted pots above the water space. Two hooks secure it to the reservoir, and a separate hole holds the water-level indicator.

1. Make the system accessible

   Carefully remove pots and plants before replacing the cover plate.

2. Prepare the reservoir

   Clean the Aqua36 reservoir and position it level.

3. Fit the cover plate

   Align the cover plate and secure it to the reservoir with its two hooks.

4. Insert the indicator

   Insert the separately supplied water-level indicator from below into its designated hole.

5. Insert the pots

   Place prepared matching slotted pots into the 36 openings.

6. Check seating

   Check the cover plate, hooks and pot rims. Open carefully for cleaning.

Item code

Aqua36-Deckel

Contents

1 Aqua36 cover plate. Reservoir, pots and water-level indicator not included.

Size

60 × 40 cm

Pot openings

36 laser-cut holes, Ø 49.5 mm, for slotted pots with 55 mm outer diameter

Indicator hole

Ø 8.5 mm

Attachment

two hooks

Material

polypropylene (PP), suitable for food contact, without plasticisers

Origin

Made in Germany

Match light, temperature and water demand to the species. Check actual moisture and root condition regularly.

• Use water-bearing components on a suitable surface and keep escaping water away from electrical equipment.
• Do not load damaged parts. Handle plants and roots carefully during replacement.

Remove plant residues, clean gently with water and dry before longer storage. Check for damage or blockages before reuse.
