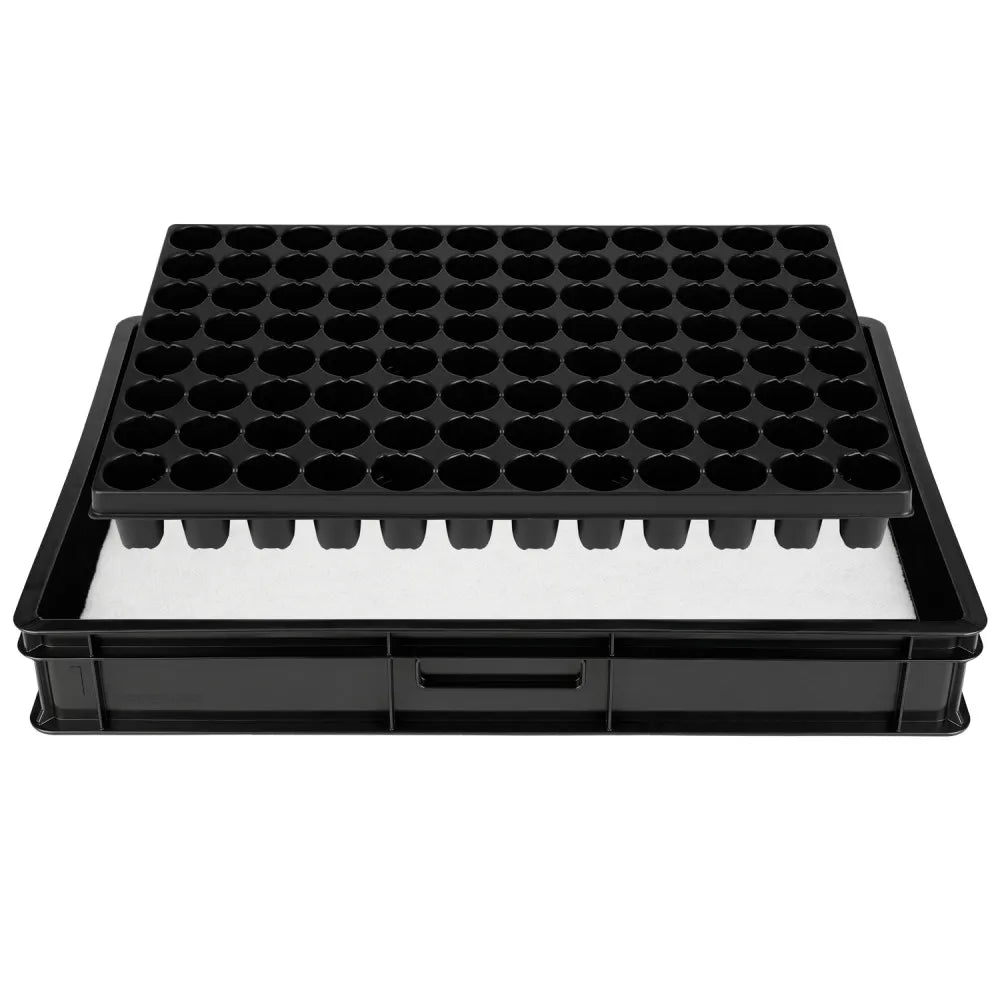

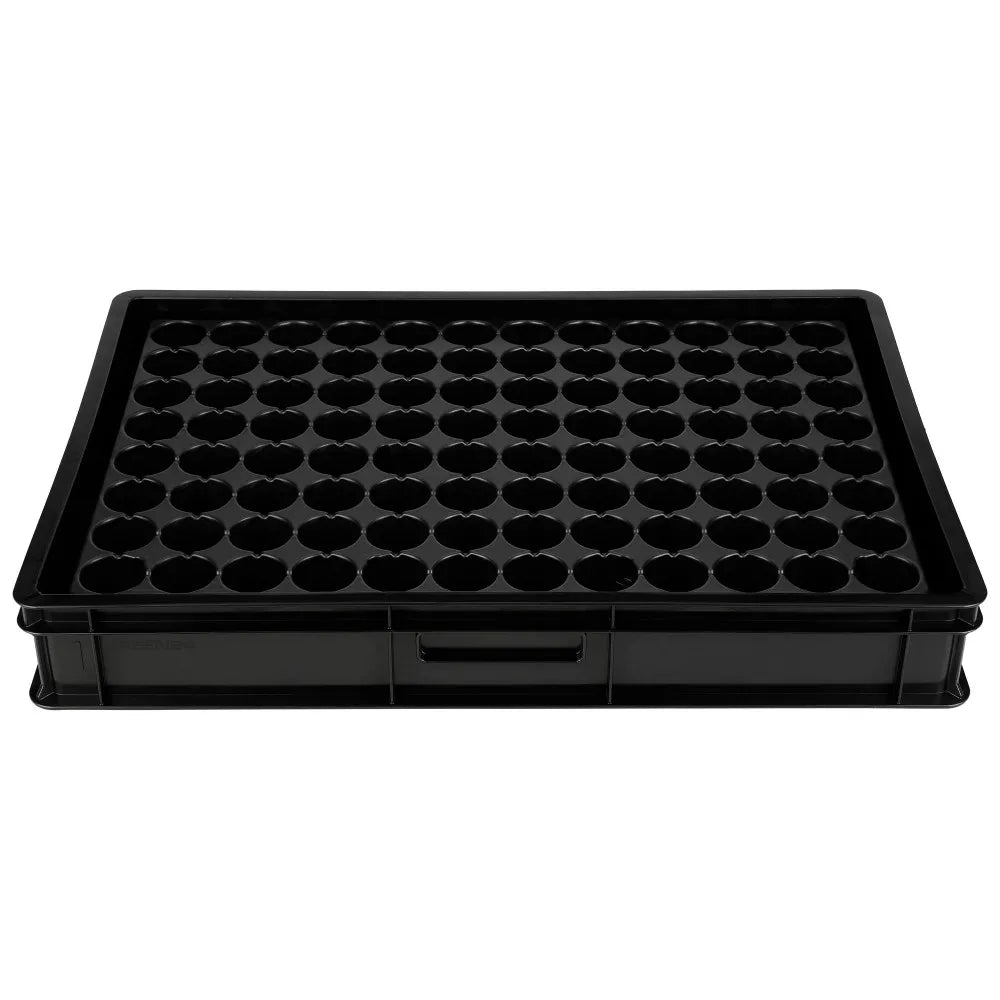

GW-96 Propagation System – 96 Cells

96 moulded cells in the QP E 96/6,5 R tray provide individual propagation positions on a shared GW657 base with a capillary mat. This version is supplied without a cover.

1. Prepare the workspace

   Clean the tray and place it on a level, load-bearing surface.

2. Prepare the mat

   Lay the GW657 mat flat inside the supplied tray and moisten evenly.

3. Assemble the system

   Position the connected cell tray; the cells remain part of this tray.

4. Prepare propagation

   Fill the cells with suitable growing medium. Choose sowing, covering and location according to the species.

5. Monitor moisture

   Check mat and growing-medium moisture regularly. Add water to match plant needs and avoid persistent waterlogging.

6. Remove plants and clean

   Gently release rooted plugs through the base openings; do not pull the shoots. After use, remove plant residues, clean the components and dry before longer storage.

Item code

Anzucht-System-GW-96

Contents

1 GW657 water tray, 1 capillary mat, 1 QP E 96/6,5 R cell tray with 96 cells, cell size Ø 42 × 65 mm. Cover not included.

Tray outer dimensions

approx. 655 × 450 × 100 mm

Tray internal dimensions

approx. 625 × 420 × 86 mm

Tray material

HDPE, black

Tray volume

approx. 22.5 L; not a recommended operating fill level

GW657 mat

white cut-to-size mat; approx. 59 × 39 cm

Mat water storage

up to 3 L/m²; area-based specification

Tray dimension drawing

Original drawing: 657 × 451 × 101 mm; the text dimensions above are approximate.

Cell tray format

600 × 400 mm

Capillary watering still requires monitoring. Check demand, container contact and moisture regularly; no fixed watering duration is assumed.

• Use water-bearing components on a suitable surface. Keep escaping water away from electrical equipment.
• Avoid overfilling and persistently wet root zones.

Remove growing-medium and plant residues, clean with water and dry before longer storage. Check for damage before reuse.
